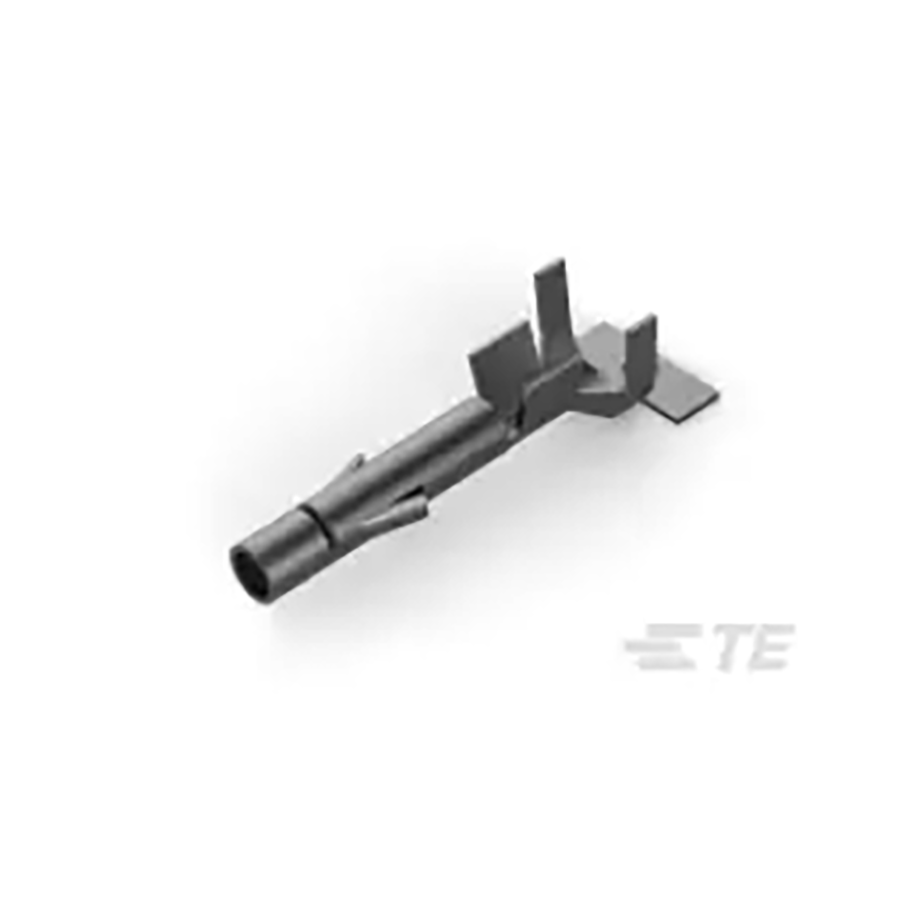

926869-1
Manufacturer:
TE Connectivity
Mfr.Part #:
926869-1
Datasheet:
Description:
IC and Component Sockets Cable Socket
| Parameter | Value |
|---|---|
| Length | 20.6 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 600 V |
| Number of Pins | 1 |
| Height | 5.8 mm |
| Material | Brass |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 5.8 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Current Rating | 19 A |
| Max Current Rating | 19 A |
| Approvals | UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| ELV | Compliant |
| Wire/Cable Diameter | 5.1 mm |
| Connector Type | Socket |
| Wire/Cable Gauge | 16 AWG to 13 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Wire Gauge (Max) | 15 AWG |
| Wire Gauge (Min) | 13 AWG |
| Insulation Diameter | 5.08 mm |
| Contact Gender | Female |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 1545
Distributors
pcbx
pcbxUnit Price$0.21297
Ext.Price$0.21297
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21297 | $0.21297 |
| 1000 | $0.07099 | $70.99000 |
